Part Number :
AD8336ACPZ-WP
Manufacturer :
Linear Technology (Analog Devices, Inc.)
Description :
AD8336ACPZ-WP datasheet pdf and Linear - Amplifiers - Special Purpose product details from Linear Technology (Analog Devices, Inc.) stock available at Rozee
Lifecycle :
New from this manufacturer
Delivery :
DHL、UPS、FedEx、Registered Mail
Payment :
T/T Paypal Visa MoneyGram Western Union
More Information :
AD8336ACPZ-WP More Information
ECAD :
Request Free CAD Models
Pricing(USD) :
$12.41
Remark :
Manufacturer: Linear Technology (Analog Devices, Inc.).
Rozee is one of the Distributors.
Wide range of applications.
Mount :
Surface Mount
Height :
800 µm
Bandwidth :
115 MHz
Resistance :
900 kΩ

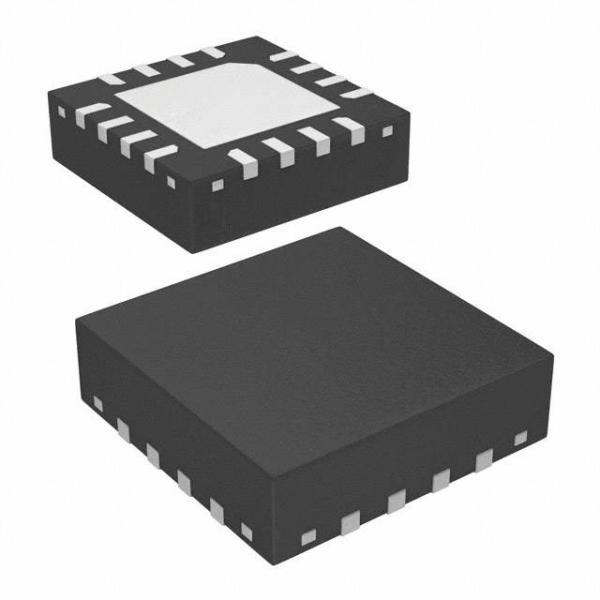

Case/Package :
LFCSP EP
Response Time :
300 ns
Number of Pins :
16
Power Dissipation :
672 mW
Max Supply Voltage :
12 V
Number of Channels :
1
Number of Amplifiers :
2
Gain Bandwidth Product :
80 MHz
Max Dual Supply Voltage :
12 V
Operating Supply Current :
25 mA
Max Operating Temperature :
85 °C
Input Offset Voltage (Vos) :
600 µV
Power Supply Rejection Ratio (PSRR) :
40 dB
Products Category :
Integrated Circuits (ICs) - Linear - Amplifiers - Special Purpose
Qty :
553 In Stock
Applications :
Hybrid, electric & powertrain systems
Datacom module
Width :
4 mm
Length :
4 mm
Slew Rate :
550 V/µs
Schedule B :
8542330000
Voltage Gain :
62 dB
-3db Bandwidth :
115 MHz
Contact Plating :
Tin
Input Bias Current :
725 nA
Min Supply Voltage :
3 V
Number of Elements :
1
Max Power Dissipation :
1.12 W
Nominal Supply Current :
25 mA
Min Dual Supply Voltage :
3 V
Operating Supply Voltage :
5 V
Min Operating Temperature :
-55 °C
Output Current per Channel :
20 mA
